SpaNET SV3 Variable Heat Controller Complete with Touchpad GENUINE

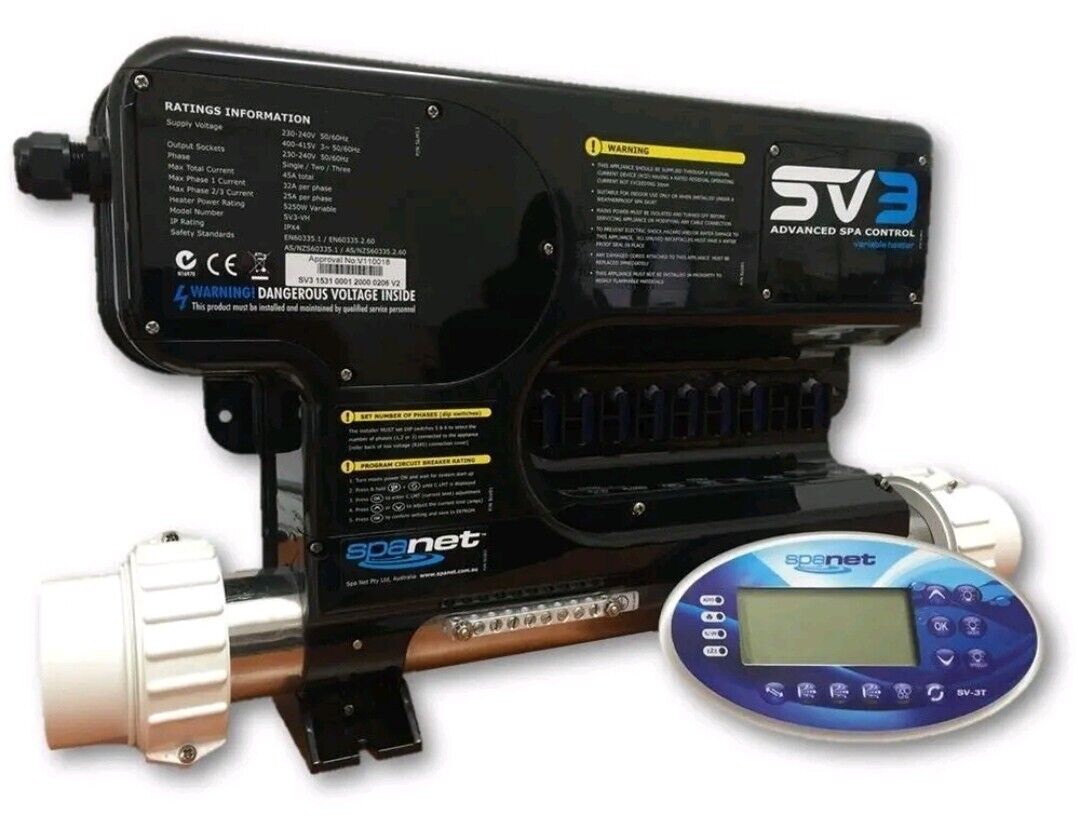

SpaNET SV3 Variable Heat Controller Complete with Touchpad

The SV3-VH features a large 6kw Smart Variable Heater, a complete heat pump interface for cost effective heating and cooling of your spa, PowerSAVE technology for lower daily operating costs as well as a host of industry leading features and flexible configuration options to tailor the spa control to your spa range.

Single, two and three phase ready. Coupled with an attractive, simple to use touch pad with large, easy to read backlit display and buttons the SV3-VH is your ideal spa control choice.

SPECIFICATIONS

Power:

1 phase 230-240v AC

3 phase 400-415v AC

50/60Hz .

MAX total current 45amp or 25amp per phase

Dimensions:

Controller:

544x309x90mm 5kg

Touch Pad:

Needs an oval cut out of 145mm long and 74mm wide.

Has an oval face size of 165mm long and 94mm wide

Outputs

Heater: 6kw Variable

Light x 2 (needs to be a Spanet LED light)

Touch Pad socket: x 2

Circulation Pump: x1 (Adj 1-24 hour)

Ozone x 1

Air Blower: x1 (Vari Spd)

Pump 1: 1 x 1 or 2speed pump

Pump 2: 1 x 1spd (If outlet Pump 1 has a 2speed pump fitted Pump 2 outlet can not be used)

Pump 3: 1 x 1spd pump

 When purchasing, tap the edit cart link to see what freight you pay.
