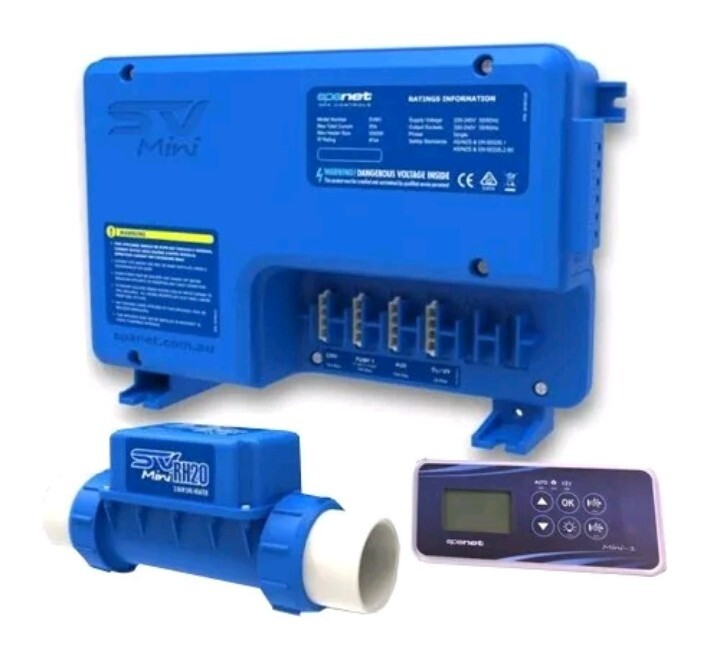

SpaNet SV Mini 1.5kw 10amp Controller Kit Genuine

Features:

Heat pump interface

Dynamic thermal tuning

Smart Filtration

WIFI remote access

Global remote technical support via WIFI

Auto daily sanitize

Programmable sleep timer

SV Mini 230volt outputs:

PUMP 1, Circ Pump, 1Spd Pump, 2Spd Pump (the pump on this outlet must be pushing water through the heater)

AUX, 1Spd Pump or Blower

230V, this outlet has a constant 230volts and is not switchable (can be used to power a heat pump or any other item requiring a constant 230volts)

O3/UV, this outlet is only to be used with an ozone system

SV Mini low voltage outputs:

1 x Touch pad outlet

1 x Light (can only fit a Spanet SV Series Light in 2.5" or 5")

1 x Heat Pump Port

1 x Wifi Port

SV Mini Power Ratings:

Input Voltage: 220-240volt 50/60hz

Rated with mains lead: 10amp max

Rated when hard wired: 25amp max

Current rating: this unit is supplied with a 10amp lead and plug but the lead can be removed and the SV Mini can be hard wired with a 25amp power supply.

SV Mini Features:

In heater temp sensor

Max Temp 41deg

Adjustable Filtration

Sleep Timer

Heat Pump Interface

Wifi Interface

Programmable Load Shedding

Dimensions:

Control box: 315W x 210H x 85D mm

Power lead: 3m

Heater including unions: 310W x 135H x 100D mm

Heater Power Lead: 1.5m (heater lead is hard wired into the controller)

Heater Data Lead: 1.5m

Touch Pad Face Size: 130W x 60H x 30D mm

Touch Pad Hole Size 110W x 40H mm

Touch Pad Lead: 2.3m
