Spa Pump Edgetec Triflo Sensa Touch 1.0 HP Model 6109 Genuine

Description

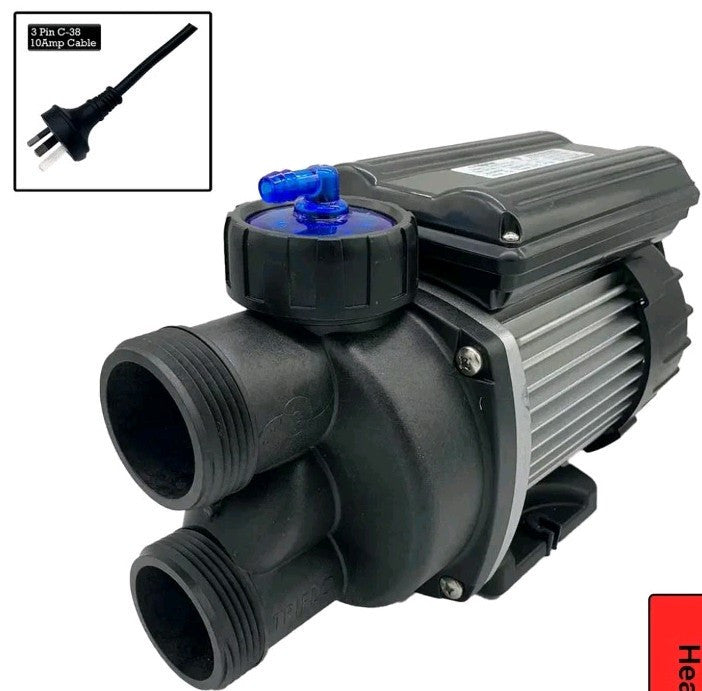

Edgetec TriFlo 1hp Sensa Touch

The Sensa Touch control panel operates the pump and heater from the side of your bath. By simply pressing the touch pad, your pump start and automatically initiates the heater function to maintain your bath water temperature. A revolutionary new “Flat Plate” stainless steel 700 watt heater element is built into the pump, out of the main water flow path. The internal control system features automatic shut down under “no water/blocked suction” condition for optimum safety.

The TriFlo pump internal design allows the water to self drain so that there is no residue water left in the pump when the spa is emptied in accordance with Local Health Regulations.

TriFlo spa bath pumps are designed for spa bath operation only and should not be used in chemically treated water or any other purpose without seeking written approval from, Spa-Craft Pty Ltd for the application.

There are 2 power sizes in the range -1.0hp and 1.5hp – these are designed to match the type, size and number of spa jets in your bath.

Alternate Part No.

DC-075-ST

TF075-ST-50

Specifications

Pump Specifications

Wattage: 750W

Speed: Single

Union Size: 40mm

Lead Length: 1.8m

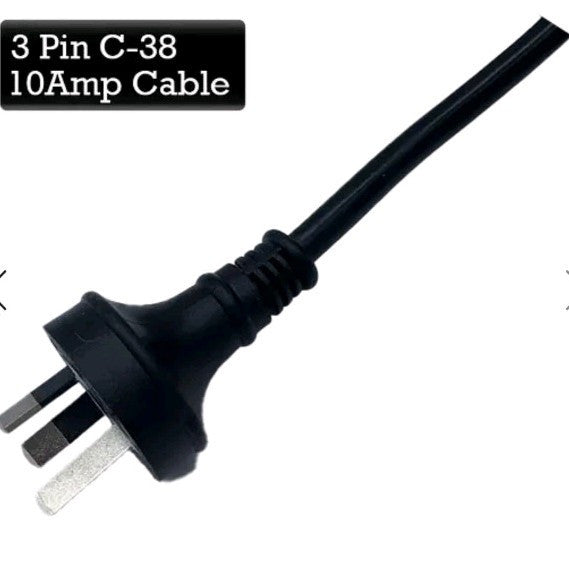

Plug Type: C38

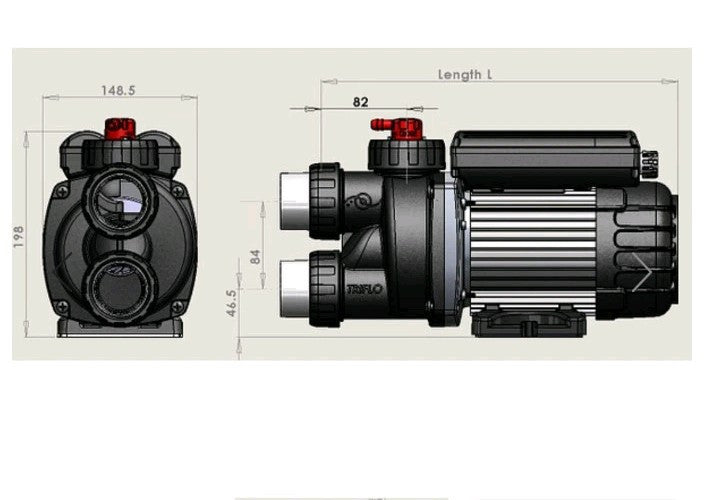

Pump Dimensions

Length: 384mm

Width: 148mm

Height: 198mm

Weight: 10kg

Warranty

12months
